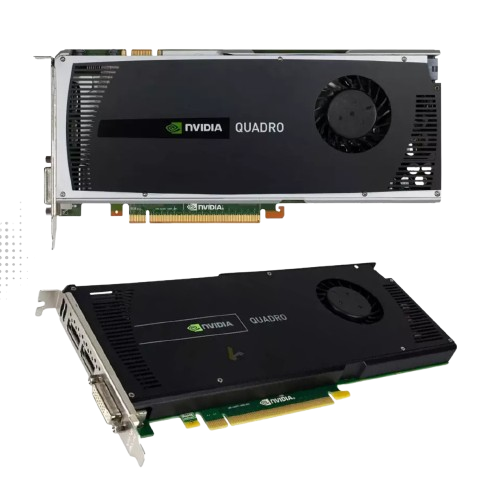

The NVIDIA Quadro 4000 is a robust professional graphics solution designed to enhance productivity for designers, engineers, and content creators. Built on the advanced Fermi architecture, it features 256 CUDA cores and 2GB GDDR5 memory with a 256-bit interface, providing up to 89.6 GB/s bandwidth for smooth handling of complex 3D models and simulations. Supporting DirectX 12 with compatible drivers, it delivers cutting-edge visual performance for modern workflows, alongside OpenGL 4.1 and Shader Model 5.0. With one DVI-I and two DisplayPort outputs, it supports dual ultra-high-resolution displays up to 2560×1600. Its single-slot design and 142W power draw with a 6-pin connector make it a versatile fit for workstations, offering reliable precision for CAD, animation, and visualization tasks.
- Architecture: Fermi (GF100 chip)
- CUDA Cores: 256
- Memory: 2GB GDDR5
- Memory Interface: 256-bit
- Memory Bandwidth: 89.6 GB/s
- Core Clock: 475 MHz
- Memory Clock: 702 MHz (2.8 Gbps effective)
- Display Outputs: 1x DVI-I (dual-link), 2x DisplayPort 1.2
- Maximum Resolution: 2560×1600 @ 60 Hz (DisplayPort)
- Power Consumption: 142W
- Power Connectors: 1x 6-pin
- Interface: PCI Express 2.0 x16
- Supported APIs: DirectX 12 (with updated drivers), OpenGL 4.1, Shader Model 5.0, CUDA, OpenCL
- Cooling: Active (single-slot)
- Features: ECC memory support, NVIDIA 3D Vision Pro, Quadro Sync
